F-Series mast climbing platform
- Link towards INSPECTION CHECKLISTS
Monorail
A monorail system allows workers to slide loads along instead of having to carry them. Few parts and minimum hardware make for quick installation.
Compatible with :
Technical specifications
| Load capacity | Up to 1000 lb (454 kg) as per distance from face of work |
|---|---|
| Beam length and weight | 9' (2,7 m) long • 85 lb (38 kg) |
| Handling equipment | 1 ton trolley and 1 ton chain block |
Weather protection
Our weather protection system is perfectly designed to accommodate both top and bottom platform requirements. Most importantly, it keeps workers comfortable in all kinds of weather. And it can even be used to protect against falling debris.
For more information/specifications about the weather protection system, please consult the operator's manual.
Compatible with :
Bridges and bridge extensions
Hydro Mobile offer a variety of bridges to adjust to any set-up.
In addition to bridges, bridge extenstions can extend deck from 5' (1,5 m) to 7' (2,1 m) in width, giving more space for workers to circulate arounf the set-up (available fo 60" and 30" bridge).
Technical specifications
| 120" bridge: Dimensions & Weight | 121" X 62" X 36" (307 cm X 157 cm X 91 cm) - 720 lb (327 kg) |
|---|---|
| 60" bridge: Dimensions & Weight | 61" X 62" X 36" (155 cm X 157 cm X 91 cm) - 390 lb (177 kg) |
| 30" bridge: Dimensions & Weight | 31" X 62" X 36" (79 cm X 157 cm X 91 cm) - 280 lb (127 kg) |
| 60" bridge extension: Dimensions & Weight | 30" X 60" X 5" (76 cm X 152 cm X 13 cm) - 124 lb (56 kg) |
| 30" bridge extension: Dimensions & Weight | 30" X 30" X 5 " (76 cm X 76 cm X 13 cm) - 96 lb (44 kg) |
Swivel Bridge
The swivel bridge accessory gives the added flexibility to accomodate angles and almost any building configuration, even curved shapes.
Compatible with :
Technical specifications
| Dimensions | 69" X 65 " X 40" (175 cm X 165 cm X 102 cm) |
|---|---|
| Weight | 740 lb (336 kg) |

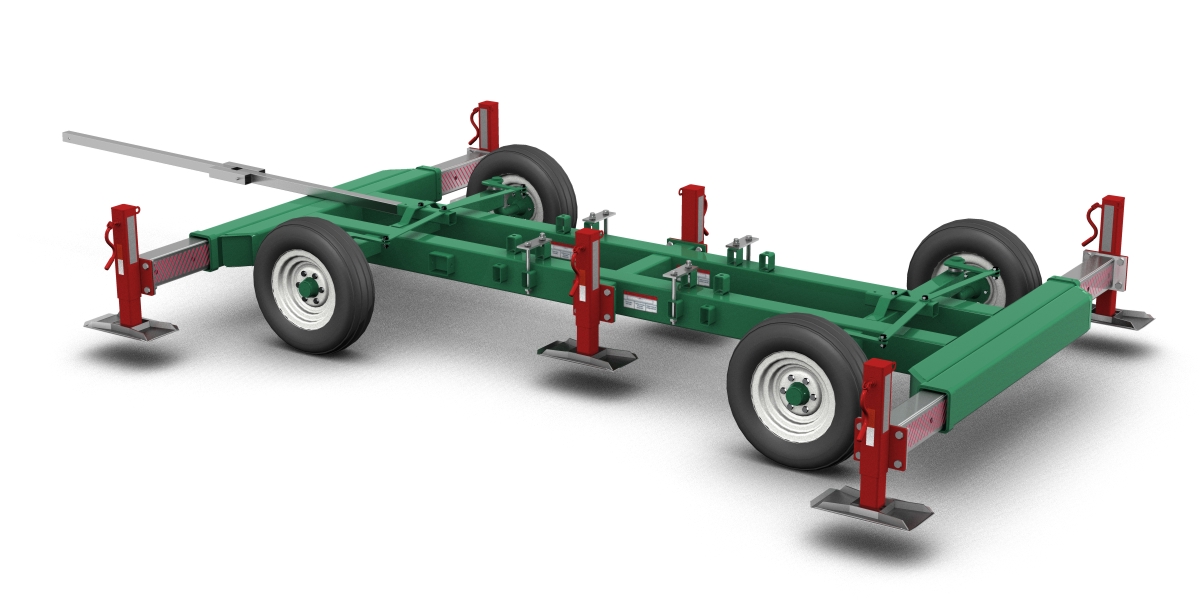

Mobile chassis
The mobile chassis permits quick relocation and set-up of platforms on the work site. It also provides considerable support: platforms on the chassis can safely be built up to 40' (12,2 m) in height freestanding.
