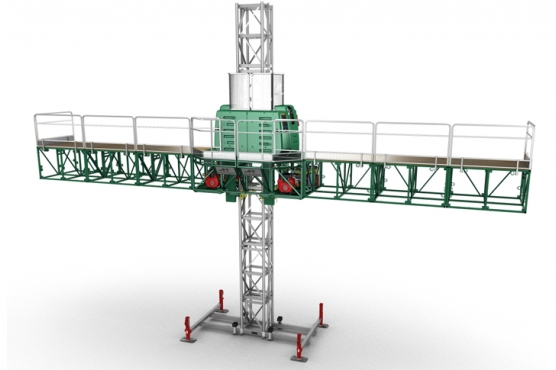

F-Series mast climbing platform
The F-Series mast climbing platform is specifically designed for projects 100' in height and more. This mast climbing platform can accommodate the needs of a wide variety of types of work: windows, EIFS, stucco, painting, and even bricklaying. What's more, trades can work on separate platforms at different heights. It's ideal for either new constructions or restoration.
| High Speed | 12,000 lb load lifted at 38' per minute. |
|---|---|
| High-Tech | New patented independent vertical traveling system. |
| High on Safety | 6" emergency stopping length with less than 1G (safety gear patent pending). |
| High Efficiency | 2 independent working levels on one mast (F-300). |
The F-Series mast climbing platform features three models that offer different levels of performance to accommodate unique project needs and budget considerations. It can be configured as a single or twin mast, offering the possibility of independent platforms at different levels, and the ability to conform to an extensive range of building shapes. And it has the highest speed/load capacity ratio on the market. All of which contribute to an estimated 30% increase in productivity, due to greater labor efficiency and reduced set-up time.
The F-Series features a patented travelling system, which makes it possible to have two independent platforms on one mast. Combined with ample 5' (1,5 m) work space (expandable to 7' (2,1 m)), this means that a given trade can work at two different heights on the same project.
The F-100, F-200 and F-300 offer different levels of performance. See the comparison chart below for detailed information on key differences between each platform.
|
|
|
|
|---|---|---|---|
| 6000 lb (2722 kg) capacity | Standard | n/a | n/a |
| 12 000 lb (5443 kg) capacity | n/a | Standard | Standard |
| 38' (11,6 m)/minute speed | Standard | n/a | Standard |
| 19' (5,8 m)/minute speed | n/a | Standard | n/a |
| Self-sufficient gas-powered hydraulic system |
Standard | Standard | Standard |
| Single-mast set-up | Standard | Standard | Standard |
| Twin-mast set-up | Optional | Optional | Standard |
| Electrical system | Optional | Optional | Optional |
| Mobile chassis | Optional | Optional | Optional |
| Two independent working platforms at different levels |
n/a | n/a | Standard |
